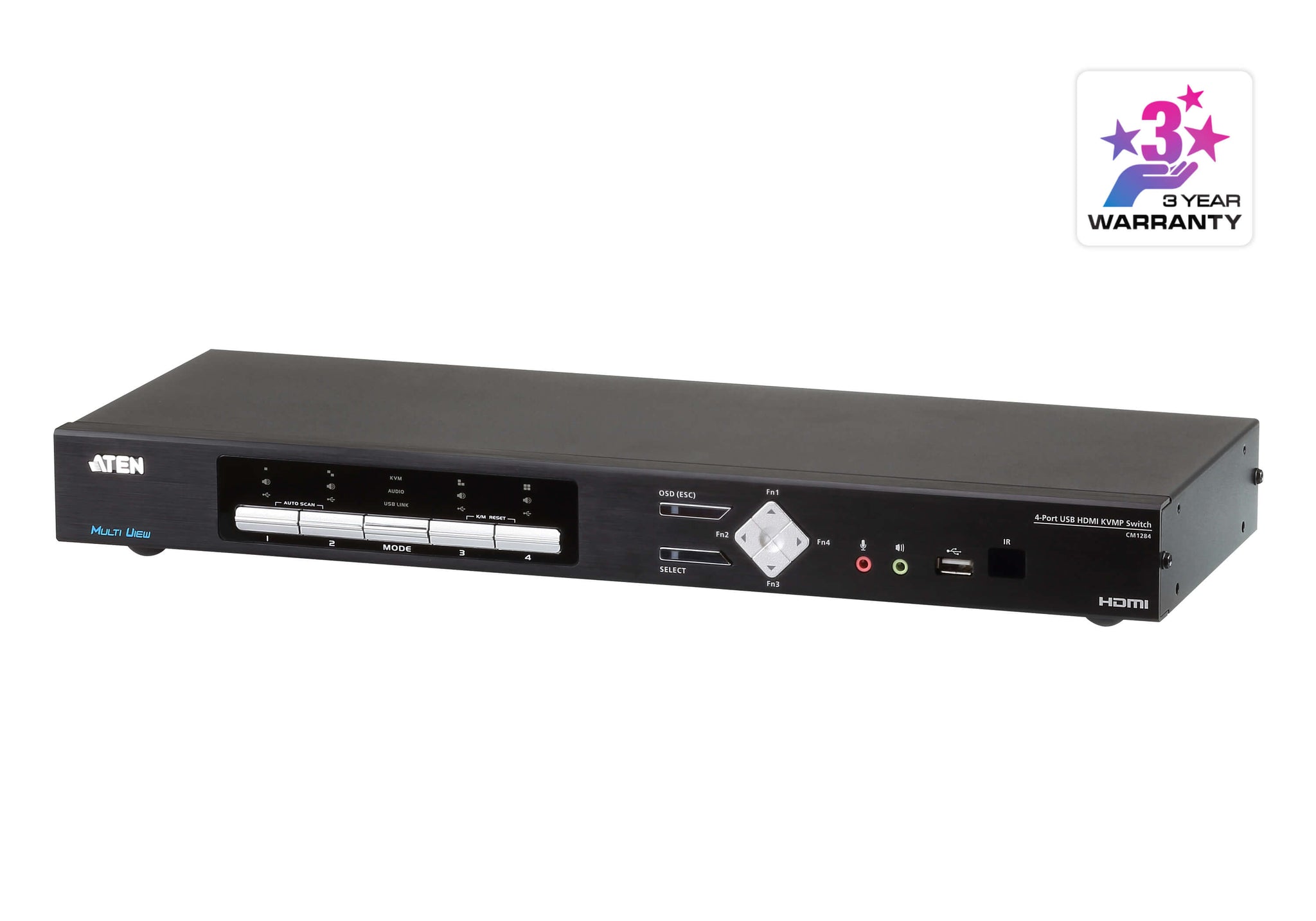

ATEN CM1284 KVM Switch Rack-Mountable Black

ATEN CM1284. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 px, Video bandwidth: 30 Hz. Product color: Black, Rack capacity: 1U, Enclosure material: Metal. Power source: AC power, Voltage: 110 - 220 V, AC input frequency: 50 - 60 Hz. RoHS compliance ATEN CM1284 4-Port USB HDMI Multi-View KVMP ™ switch enhances real-time monitoring operational efficiency. CM1284 enables users to manage data more efficiently by enabling simultaneous selection, switching and display of multiple sources using independent keyboard and mouse control.

Advanced video options provide better HDMI connection definition at image resolutions up to 4K (4096 x 2160 @ 30 Hz). CM1284 provides users with real-time monitoring capability, offering dual console-side outputs. One of them provides the following display modes: Quad View, Picture in Picture (PiP), Picture by Picture (PbP), Picture on Picture (PoP), and the other provides full-screen mode. Equipped with Boundless Switching, CM1284 allows users to simply move the mouse cursor across windows to switch to other video sources. This enables immediate access to the target computer and control it.

With Daisy Chain Control (DCC) capability, users can control up to 3 additional CM1284 units via a single console. In addition, CM1284 can be cascaded to 2 levels to reach up to 16 video sources that can be simultaneously selected, switched and displayed using independent keyboard and mouse control.

Designed to meet the growing demand for multi-screen functionality, CM1284 has been specifically designed for real-time monitoring applications such as aerospace, financial trading and medical applications.

- 4-Port USB Multi-View KVMP Switch with dual displays. One screen is equipped with Quad and PiP / PbP / PoP modes, and the other in full-screen mode

- Easy resizing and/or repositioning of any PiP or PbP as required by users; supports excellent video quality - up to 4K DCI at 30Hz (4096 x 2160 @ 30Hz); YCbCr 4 :2 : 2

- DCC (Daisy Chain Control) - Controls up to 3 additional CM1284 units from a single console; Cascades up to 2 levels - Controls up to 16 computers (with MultiView 4 x 4 mode)

- Boundless Switching - Simply move the mouse cursor across windows to switch to other video sources
